RIPR Model 1402 Recorder
Recorder, Integrated Processor Router
| Applications |
|---|
| Integrated Sensor System Recording |
| EO/IR, Radar, EW, HUD/HMD/HDD |
| Flight Test Instrumentation |
| Analog & digital sensors, avionics & weapons busses, video sources |
| Training and Mission Debrief |
| Weapons employment data, EW detection and avoidance, CRM |
| Command and Control |
| Real-time data & video collect & stream, open architecture API |
Overview

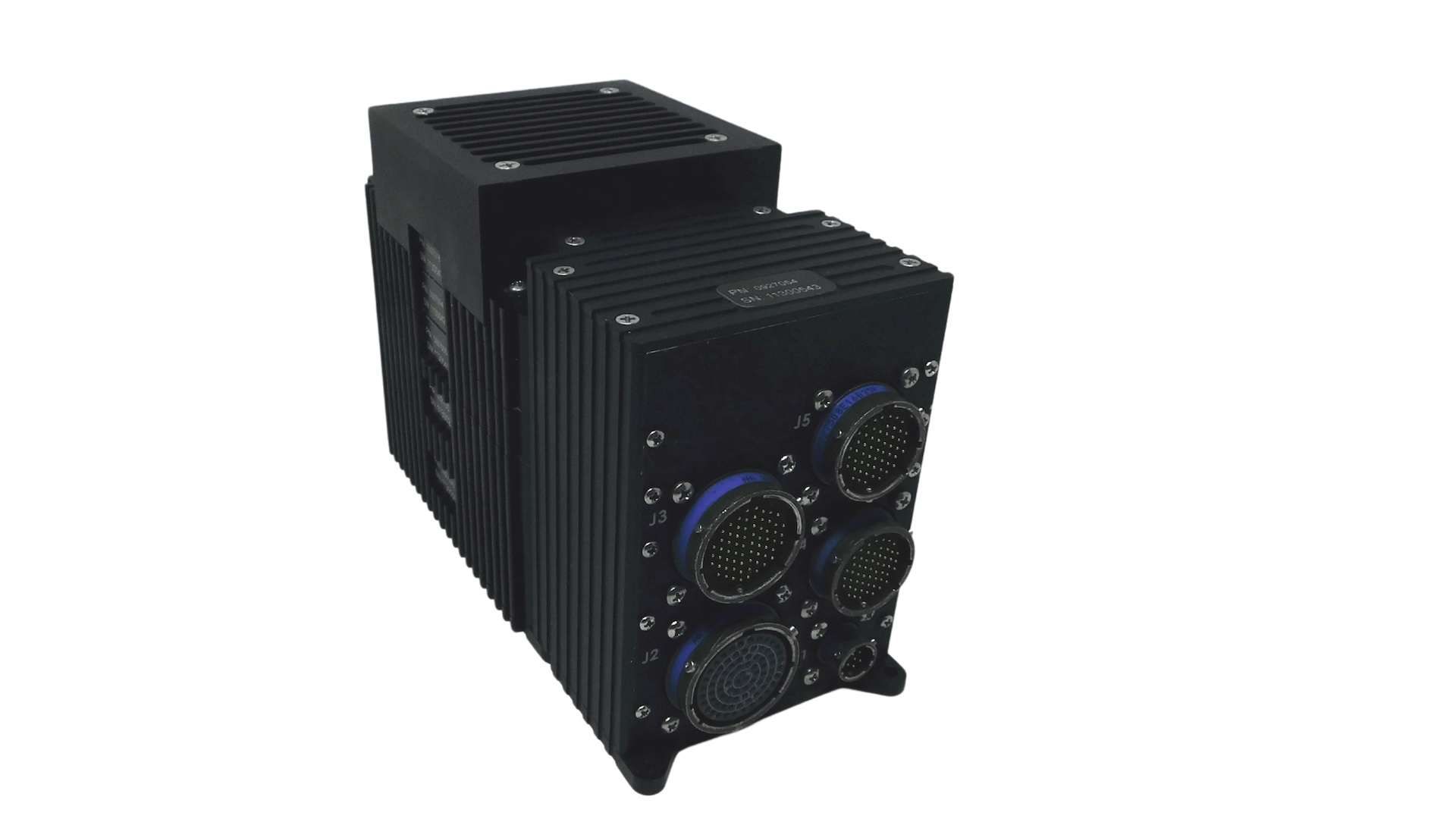

The CALCULEX Model 1402 RIPR is designed for use on a variety of platforms and applications that require a small stackable/reconfigurable or fixed multi-channel & multi-format recorder.
Building on this foundation, the 1402 RIPR family offers a versatile mix of digital and analog ports in its baseline configuration. To further extend its capabilities, a broad selection of Commercial-Off-The-Shelf (COTS) stackable and reconfigurable data and video I/O modules can be seamlessly integrated.
Designed for rapid deployment, the 1402 RIPR systems support customized data and video capture, processing and recording — meeting the unique requirements of virtually any commercial or military data acquisition environment.
Key Features
| Customized-COTS Data & Video I/O The 1402 RIPR has been configured with a COTS I/O module to provide 8-channels of RS422 or Single Ended PCM connectivity; software configurable as inputs or outputs; capable of up to 20 Mbps per channel. The baseline controller adds additional 2ch PCM RS422 differential input, 4ch 1Gb Ethernet, analog audio, and 8 discrete input and 8 discrete output. |
| Ethernet & Serial Control and Status Easily reprogram routings and link speeds. Integrable device status for real-time monitoring of all data links. Ethernet publish of any recording channels selected. |
| Rugged MIL-STD Performance Qualified for operations in the harshest of environments delivering assured performance through high shock, vibration and other environmental hazards |
| Minimized SWaP 1402 RIPR offers an unparalleled advantage in platforms and pods that require minimized SWaP and maximized processing capabilities. Time sync via 1 IRIG B AM or DC, 1553 time sync, GPS receiver optional or IEEE-1588 over Ethernet. 2ch PCM RS422 output as CH7 TM output or HDLC Ethernet over serial Streaming (EOSS) PCM out. 1,4,8, or 16TB NVMe RMM. RMM uses AEs256 self-encrypting drive. |
Qualifications & Specifications

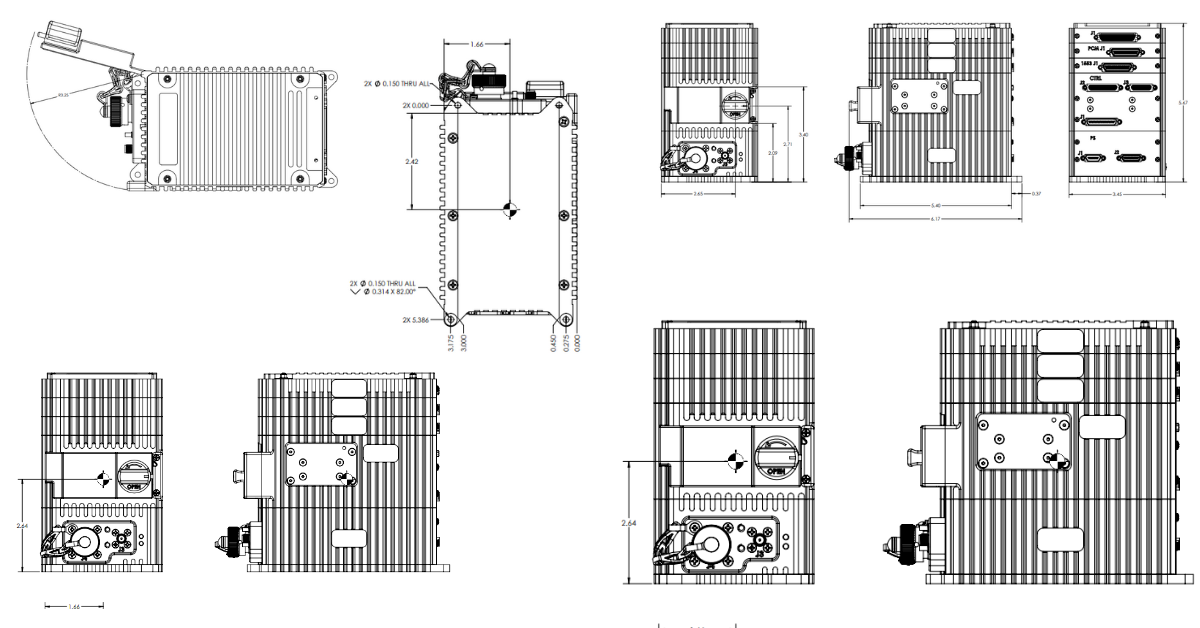

| Mechanical Details | |
|---|---|
| M1402 | |
| Weight | 4.5 lbs (2.04 kg) |
 |
|
| Product Qualifications | |
|---|---|
| Environmental | Per MIL-STD-810 |
| Altitude | 5% to 95% non-condensing cooling |
| Temperature | -40°C to +71°C Operational, -55°C to +95°C Storage |
| Humidity | 507.6, 5% to 95% non-condensing |
| Fungus | 508.8, Inert |
| Salt Fog | 509.7, 24 hrs, +35°C |
| Sand & Dust | 510.7 Proc I & II |
| Explosive Atmosphere | 511.7 Proc I |
| Acceleration | Proc II |
| Vibration | 514.8, Cat 12 |
| Shock | 516.8, Proc I 20G’s and Proc V 40G’s |
| Gunfire Shock | 519.8, F-16 Profile |
| EMI per MIL-STD-461 | CE102, CS101, CS114, CS115, CS116, RE102, RS103 |
| EMC per MIL-STD-704 | 28 VDC: Compliant w/ 50 msec holdup |
